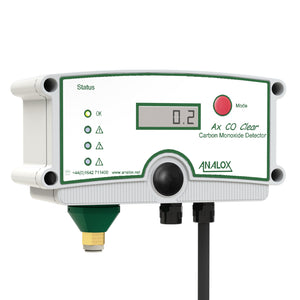

CO Clear - Carbon Monoxide Monitor (EU Plug)

Notify me when this product is available:





Applications: Scuba Diving, Military, Commercial Diving, Medical, Breathing Air, Offshore, HBOT
What is it: Carbon Monoxide (CO) Monitor
Single / Multi-Gas Detector:Single
What it measures: Carbon Monoxide (CO)
Portable / Fixed: Fixed

CO Clear, 0-10ppm in N2, For range opt 75 only - 3ppm & 10ppm, 1 relay on 1st alarm, 230V AC EURO.

The Analox CO Clear is designed to detect the presence of carbon monoxide (CO) in air or nitrox gas compressors. Carbon monoxide (CO) is a dangerous and potentially lethal gas, the effects of which are increased with pressure. It could enter the breathing gas from the compressor inlet or from issues relating to the compressor maintenance.

The CO Clear can be simply installed inline after the compressor inlet but before the cylinders.  Analox recommend that a twin stage regulator is used to reduce the sample pressure.

How it works

The CO Clear is designed to be installed inline on an air compressor arrangement to warn the operator if there a potential contamination of carbon monoxide (CO) before it reaches the cylinders/user.

Analox recommend that a twin stage regulator is used to reduce the sample pressure. The monitor consists of a main sensor unit installed after the pressure has been regulated down to between 1 and 3 barg. Optional extras include a relay which could be used to switch off the compressor or sound a remote alarm. The unit has 2 alarm set points and audio/ visual alarms.

With audio/visual alarms and options including relays and 4-20mA, there is no better value, or more accurate and reliable carbon monoxide (CO) monitor on the market. It is available as either a 230V AC, 110V AC or 24V DC powered unit, and fitted with UK, Euro, US or Australian plugs.

The instrument uses an electrochemical cell together with state of the art technology, built in an IP65 splash proof housing, and is designed to provide long, trouble free service, with minimum maintenance.

The monitor is wall mounted to provide continuous online monitoring.

What can it prevent?

Carbon Monoxide (CO) is a dangerous and potentially lethal gas, the effects of which are increased with pressure. It could enter the breathing gas from the compressor inlet or from issues relating to the compressor maintenance.

Let us take care of you, so you can take care of them.

Saving lives and rapid crisis response is at the heart of what we do. We design our systems in a way which enables you to focus on the job at hand, delivering the best possible care for your patients.



*To qualify for next business day shipping, your order must be placed by 2pm (GMT).


  • Fast accurate analysis of carbon monoxide
  • High performance equipment at an affordable price
  • Quick and easy to use
  • Market leader for CO analysers
  • Robust design
  • CO range(s): 0.0 to 10.0 ppm (Air, Nitrox & Heliox systems),
    0.0 to 25.0 ppm (Air & Nitrox systems only)
  • Inlet pressure range: 1 to 3 bar gauge (14.5 to 42.5 psi)
  • Sensor accuracy: better than ± 1 ppm at constant temperature and pressure*
  • Response time: < 90 seconds
  • Operating temperature: 0 to 40 °C (32 to 104 °F)
  • Temperature effect: 0.04% of reading/ °C
  • Atmospheric pressure range: 800 mbar to 1200 mbar
  • Warm up time: 2 minutes
  • Weight: 400 g / 0.8 lbs
  • Dimensions: 175 x 130 x 70 mm (l x w x d), 6.8 x 5.11 x 2.75 inches (l x w x d)
  • IP rating: IP65
  • Sensor type: electrochemical cell
  • Sensor life (expected): 2 years at standard temperature and pressure
  • Sensor warranty: 9 months graded
  • Electronics warranty: 1 year
  • Display: 4 digit LCD
  • Alarms: 2 x alarm visual indicators, 1 x system fault indicator, 1 x status indicator,
    common audible alarm
  • Relays: one or two optional alarm relays with changeover contacts assigned to alarm 1, alarm 2 or system fault, contact rating 230 V AC or 30 V DC at up to 2 A, contacts are non-latching fail-safe
  • Outputs: 2 wire 4-20 mA (max load 150 Ω)
  • Power supply options: Option selected at time of manufacture/order, 210/250 V AC, 110/120 V AC, 9-24 V DC

    *This accuracy applies to an instrument calibrated using nitrogen balance gas and the monitoring of nitrogen balance gas only
  • Analox CO Clear Main Unit and Alarm Repeater
  • User Manual
  • Test Certificate
  • Rawl Plugs and Screws for Wall Mounting
  • Drilling Template
  • Analox CO Clear Window Sticker
  • Analox CO Clear wall notice

    Any optional items ordered such as:
  • Battery back-up
  • Relay junction box
  • Additional 6mm Push-fit connector
  • Additional 1⁄4 inch Push-fit connector
  • 6mm tubing
  • 1⁄4 inch tubing
